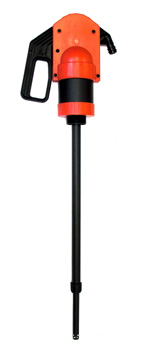

A unique
design incorporating a toggle mechanism in the handle linkage to
correct piston shaft geometry to create smooth operation.
All polypropylene construction, it will fit 2" BSP or 2" NPT threads
and incorporates an adjustable locking nut to enable the pump to be
locked in the correct position on the barrel for easy operation.
The pumps deliver 500cc/stroke and is available with Viton or EDPM
seals to give maximum chemical compatibility.
A range of adaptors are available (see below) and the telescopic
suction tube will extend to 945mm to fit most containers. |
| |
|
|
|
Part No. |
Description |
UK
Pack Qty |
Export
Pack Qty |
|
3007 |
Lever action pump fitted with
Viton seal |
10 |
10 |
|
3006 |
Lever action pump fitted with EPDM
seal |
10 |
10 |
| |
|
|
|
See adaptor range
for converting from 2" BSP. |
